Cheap and Small Aquaponic Auto Siphon (Growbed Space Saving) by Mohammade9



Cheap and Small Aquaponic Auto Siphon

Assalaamu 'alaikum,
This project will be useful for whose space within growbed is a problem, or have only a "small" growbed.
Just like my problem, I intended to "start practicing" in aquaponic world using smaller scale growbed. Searched around reference from internet, mostly recommend BELL SIPHON.
Unfortunately this kind of siphon occupies too much space within growbed. This is not so kind for my small growbed :) Because we want to grow as many plantation as possible :)

Step 1: Make Your Solid (Grow Media) Filter using Small Bottle!

Picture of Make Your Solid (Grow Media) Filter using Small Bottle!









OK, this is important point since effective growing space in growbed is to be made as much as possible.
  • Search for small unused plastic bottle (I recycled ex. cajuput oil bottle - made in Indonesia). Wash it thoroughly to ensure no harmful chemical left to your fishes and plants!
  • if you do not have small plastic bottle, you can use long bottle then cut the mouth and the bottom from the body (see above 2nd - 4th photos), then join them together using glue.
  • once you select the plastic bottle, drill some hole (5th photo). I found punching holes using heated nail (6th photo) is neater than using hand drill. And it was also faster.


Step 2: Install Your Solid Media Filter

Picture of Install Your Solid Media Filter









  1. Drill a hole at the water lowest level of your growbed. Mine is around 3cm from growbed base. Enlarge the hole using your drill by moving it around until close to your bottle Outer Diameter (tight-fit is better/stronger, Photo 1)
  2. Insert your small bottle (Solid Media/Gravel Filter) to the hole, apply glue at the interior and exterior
note: I found small water leakage on this gluing process is not critical. This siphon is still working fine even with small leakage.

Step 3: Build Your Outer Siphon




1.    Shape PVC tube as per Figure 1 (U Siphon). You can use elbow for more beautiful look (Figure 2). However I prefer using “heat and bend” method, using what I have on hand to minimise cost and shopping time.
2.    Join the “Water Lowest Level” end to your “Solid Media Filter” using glue. If both diameters are tight-fit, you can skip glue. Small water leakage is fine. My siphon is still working fine though it has small leakage.

Note:

  • ·         There is one other good thing about tight-fit mechanism; you can rotate the siphon tube to adjust “water highest level”. It is feasible though the cycle is running.
  • ·         90° bend at outlet is optional, to ease the auto siphon to start. I removed this in my 2nd siphon. If you remove it, ensure the “outlet” is kept below “Water Lowest Level”. Otherwise, your siphon will not stop at intended lowest level.
  • ·         “Water Highest Level” determines the maximum level of water in your growbed. It shall be around 5-10 cm below media for good aquaponic result: avoiding invasive algae growth. Good indication for this is when you can see growbed media top is dry, then algae will never grow on it.
  • ·         “Water Lowest Level” determines the minimum level of water in your growbed. I set mine around 4 cm from bottom of growbed. This space is for nitrification bacteria to live in.
  • ·         Best minimum grow media depth for all kind of veg is 30 cm (ref: FAO).
  • ·         ½” PVC tube is actually too big for small growbed. The “ebb and flow” cycle become too short for my small growbed. You can use smaller tube if it is available in your country. Other non-degradable material is OK to use (e.g.: stainless steel, brass, anodised aluminum tube)




Step 4: Test and Use It!


Flow water into your growbed tank before adding media (Figure 1).
Ensure the “ebb and flow” cycle is running correctly at intended highest and lowest level. If no, adjust the inlet water flow using ball valve.
Too fast inlet water flow will cause siphon never stop, too slow will cause siphon never start.

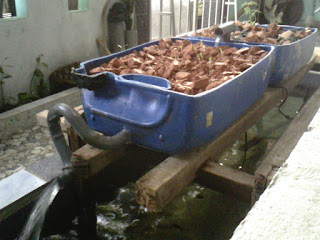

Once you are sure the cycle is consistently running, you can add media. My siphon is still working fine till today (6th day: Figure 2).



You can see the sprouts are growing (Figure 3).

Finally, feel free to leave a comment or post a question of any problem you have with your siphon. I can also barely answer a question about “bell siphon” J.

Monday, 9 May 2016

Super Cheap Aquarium Cleaner

Super Cheap Aquarium Cleaner
I also share this small project in instructables:

http://www.instructables.com/id/Super-Cheap-Aquarium-Cleaner

This project will inspire you a cheap alternative way to clean your aquarium inner side.

Step 1: Prepare your material and tool

Picture of Step 1: Prepare your material and tool
Here is list of materials needed:
  • Any hard and long stick, minimum same length as your aquarium depth.
    • I recycled paint roller stick for mine
  • Dish-washing sponge (usually come with 2 sides: soft and hard).
    • price: IDR 2,000 - 8,000 (below $1)
Tools needed:
  • mini screwdriver to punch the sponge
  • cutter/scissors to cut a groove the sponge

Step 2: Prepare the Hole and Groove

Picture of Step 2: Prepare the Hole and Groove
  1. Punch the dish washing sponge using your mini screwdriver, follow the pattern of your stick.
if your stick made from metal, it could be re-shaped by bending it over and around.
2. cut the sponge with your cutter/scissors, also follow the bending pattern of your stick.

Step 3: Assemble Them!

Picture of Step 3: Assemble Them!
Iinsert your stick tip into the hole you punched, and slip it to the groove you cut as shown

Step 4: Test it!

Picture of Step 4: Test it!
It is done! test it by wiping into your aquarium wall glass.
It should be quite easy, even my 5 years old daughter could do it easily :)
feel free to leave a comment or suggestions :)
